-Wilwood Brakes GM III Caliper 2.38/.810 - 120-5343
Manufacturer Part Number: 120-5343

-Wilwood Brakes GM III Caliper 2.38/.810 - 120-5343

https://www.hoosiermidatlantic.com/web/image/product.template/63207/image_1920?unique=6fd2fb9

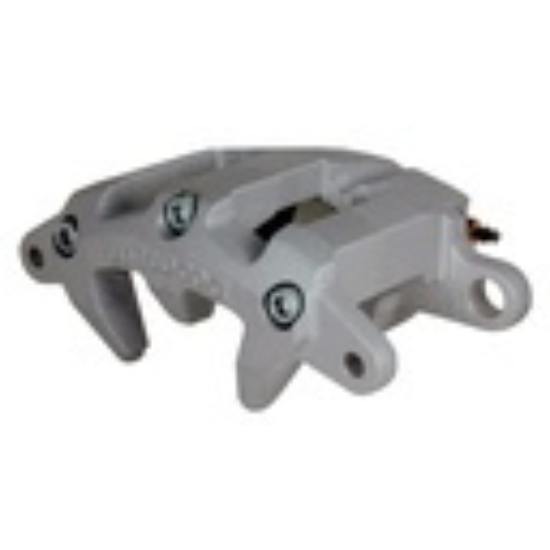

Wilwood Brakes GM III Caliper 2.38/.810 - 120-5343

$ 131.99 131.99 USD $ 131.99

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

Wilwood Brakes GM III Caliper 2.38/.810 - 120-5343

Wilwood’s GMIII caliper represents the latest refinements in caliper design and manufacturing through solid modeling and stress simulation programs. The result is the most rigid, highest torque, lightweight aluminum caliper with weights starting at 3.36 pounds. Requires use of hardened Wilwood slide pins (sold separately), request part no. 230-0619 (slide pin kit) contains 4 slide pins, enough for two calipers

Pistons
Count: Area (in²): Type: Dust Boot:
1 4.45 Stainless No
Rotor Dimensions
Rotor Width(In): Rotor Diameter(In):
0.81 11.75
Pad Dimensions
Pad Area (in²): Pad Volume (in³):
10 3.9
Mounting
Mount Center(In): Mount Position: Mount Side: Mount Type:
7.06   Universal Floating
Duty Rating & Material
Material: Weight(Lbs):
Aluminum 3.7
Colors & Finishes
Color: Finish:
Clear Clear Anodize
